Issue drawing PDF exports

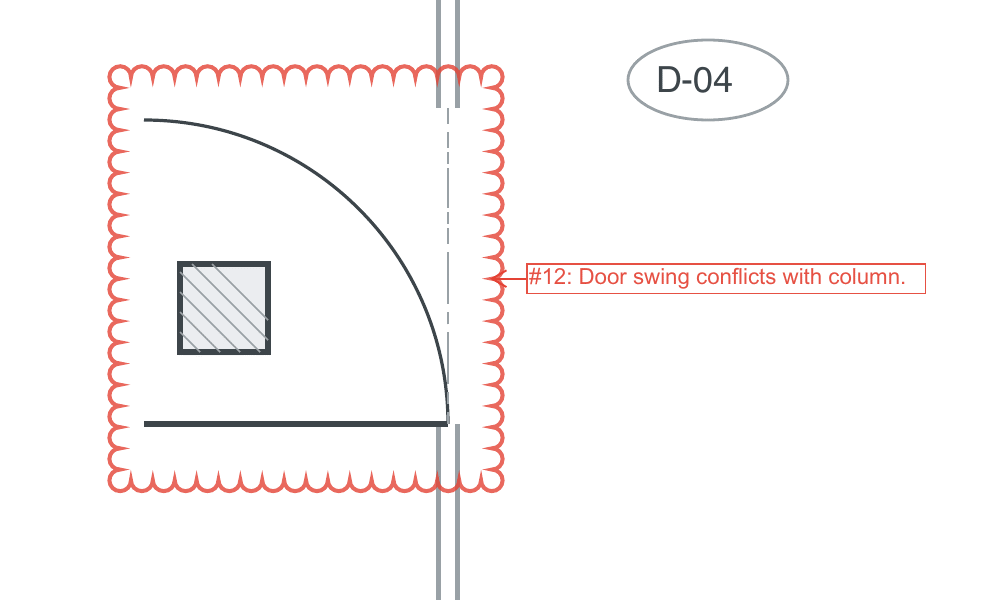

Share a drawing coordination review as a single marked-up PDF. Select issues in the issue list, choose Export, and select Annotated drawings (.pdf). Specset gathers their marked drawing sheets and adds boxed captions that explain each issue beside its location.

Only sheets with visible issue annotations are included. Sheets shared by several selected issues appear once, with their comments together. Add the optional issue index for a compact list with links to the marked drawings, or leave it off to start straight with the sheets.

Flatten annotations is on by default for sharing. Excel and CSV exports remain available in the same menu. Large drawing exports can take a few minutes, so keep the export window open until the download begins.

Read more in Issues.
